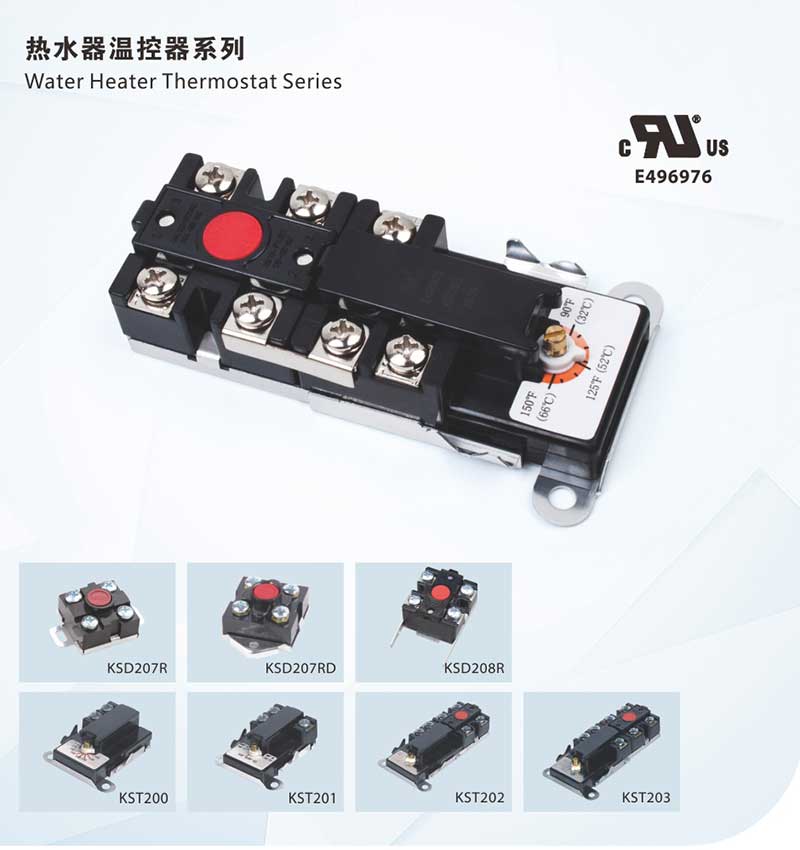

Water Heater Thermostat Series





Long Term Hvac KST200 SERIES controls are designed to meet the high electrical capacity requirements of electric water heaters. The speed and force of contact separation provides long-dependable control life at high electrical loads.

Approval: UL  CUL



Technical Specification

Model

Switch Action

Approximate Adjust. Range

Standard Adjustable Temperature Range

Open Temperature

Standard Differential
KST200 SPST 60℉（33℃） 90°  - 150℉（33° - 66℃）

Max 200℉(93℃)

Min90℉(32℃)

 3-9
KST201 SPDT 60℉（33℃） 90°  - 150℉（33° - 66℃） 9-14
KST208R DPST Manual Reset ---- ---- Max 266 Manual Reset
